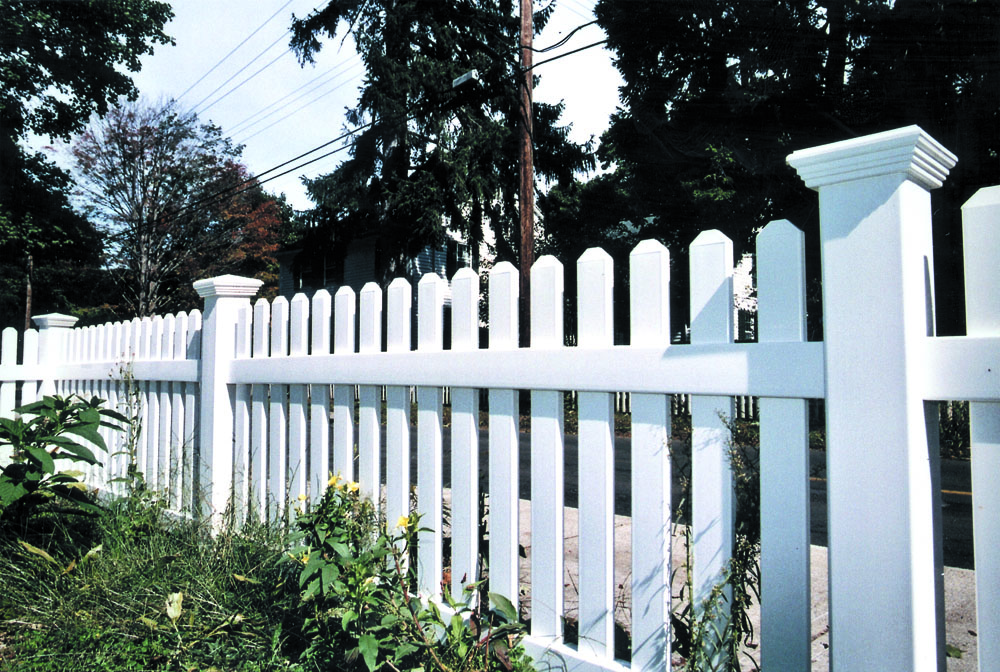

DecorativeSpaced Dog Earred - PVC
Heights:
3’, 3 1/2’, 4’, 4 1/2’, 5’
Components:
Picket Size : 7/8” x 3”
Picket Spacing : 2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Scalloped Cape Dog Earred - PVC
Heights:
3’, 3 1/2’, 4’, 4 1/2’, 5’
Components:
Picket Size : 7/8” x 3”
Picket Spacing : 2”
Construction:
Rails extend into routed holes in the posts by 1 – 1/2”, typical.
Rails are crimped at the ends and lock into place, once inserted.
Adhesive for post caps and section caps are not included.

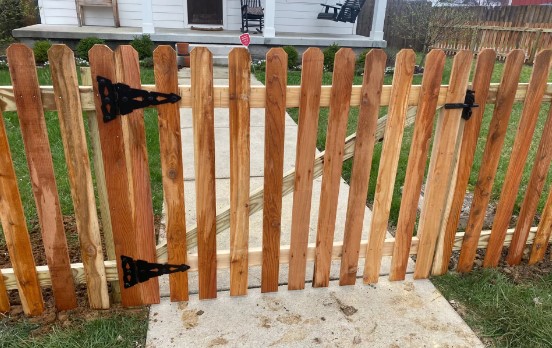

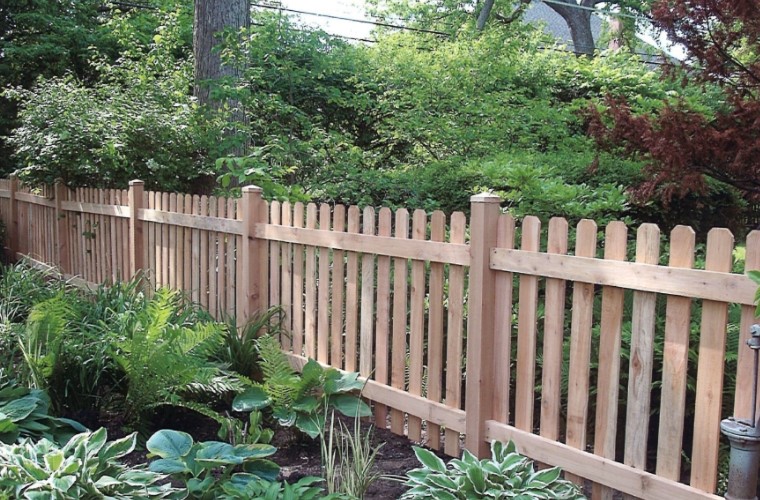

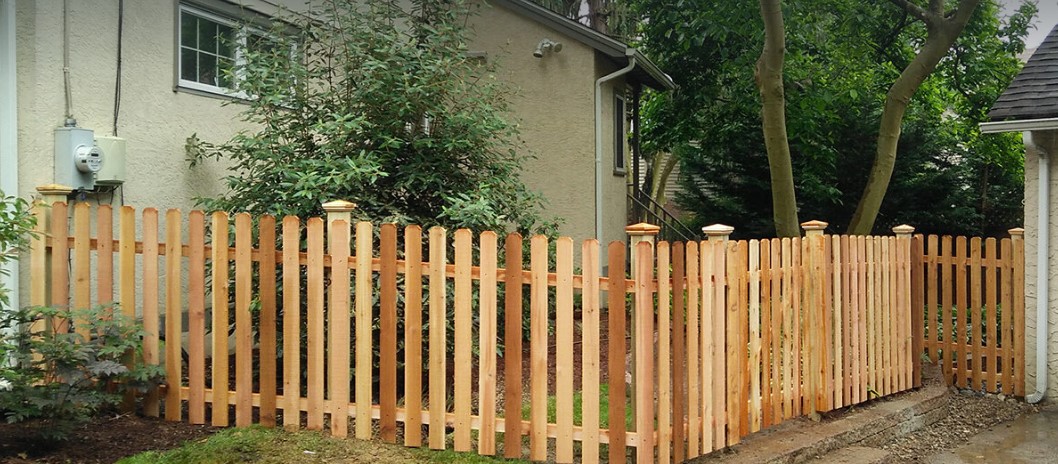

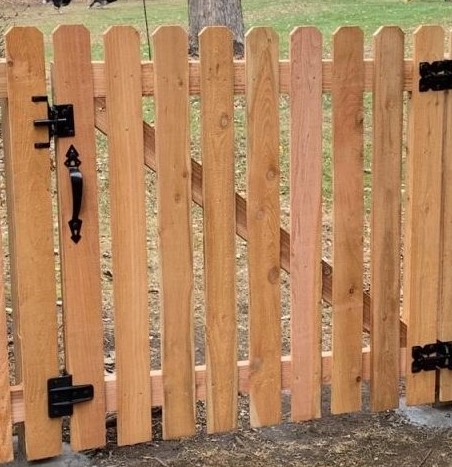

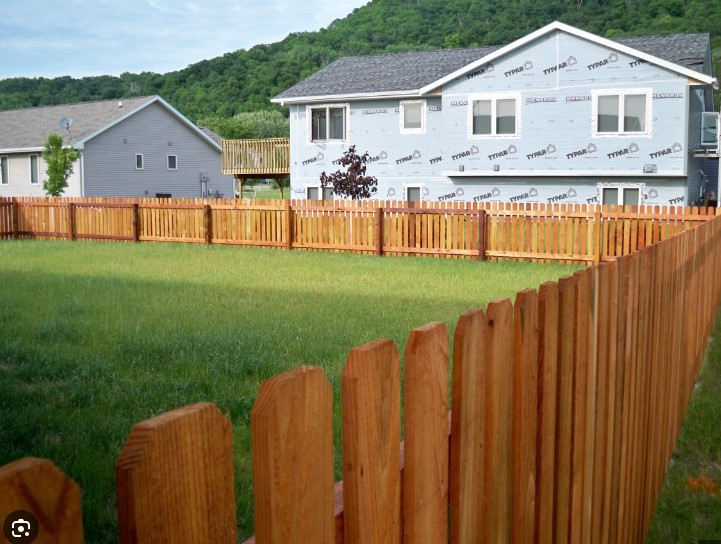

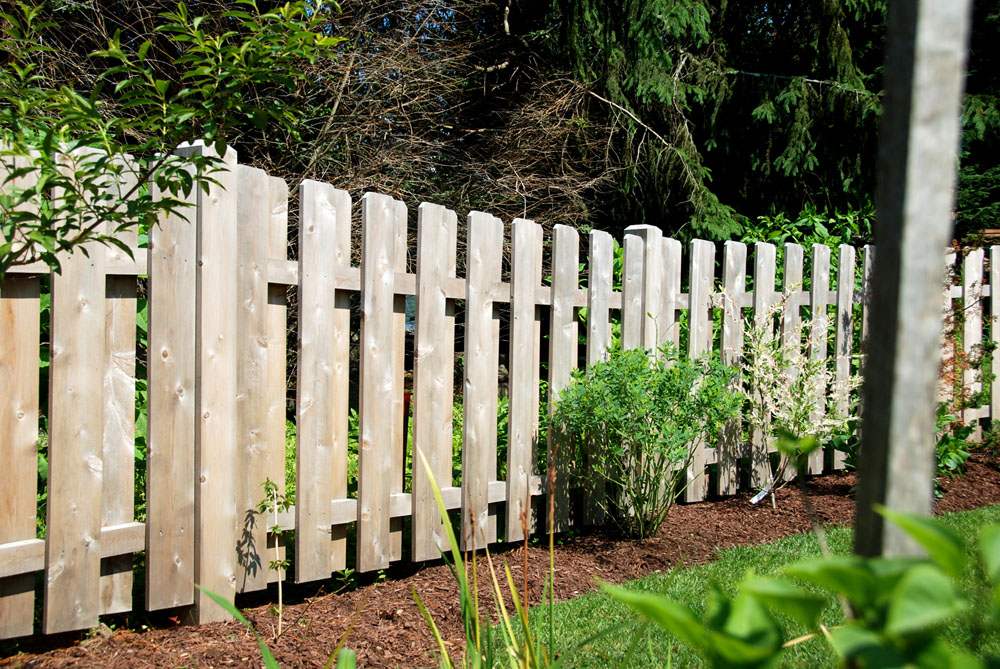

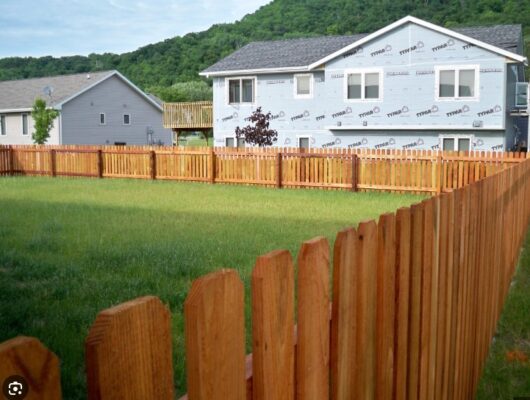

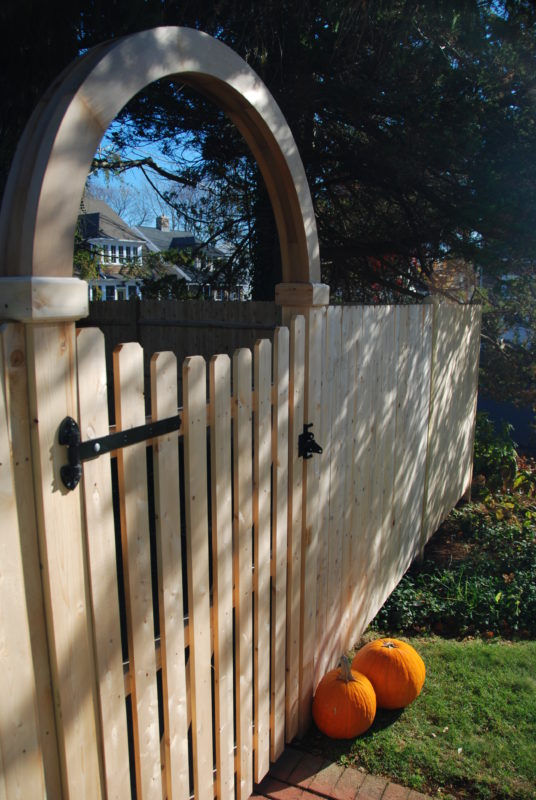

Dog Eared Spaced - Cedar
Heights:
3’, 4’, 5’, 6’, 8’
Components:
1” x 4” boards with 45 degree tops mounted on 2” x 3” molded
cedar backer rails with 1 5/8” spacing.
Construction:
Double nailed and dowelled.
Opt. Spacing:
1”–2”–3”

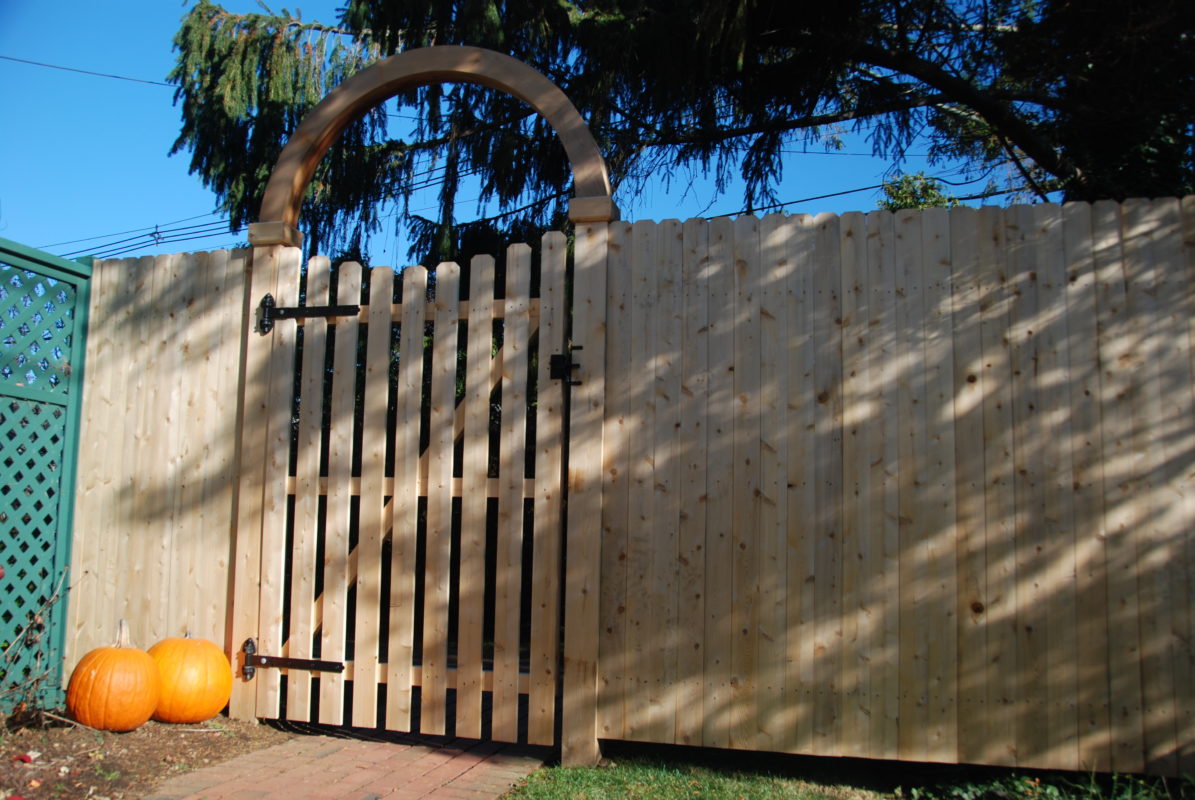

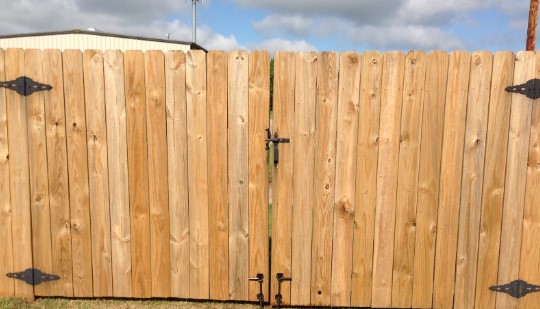

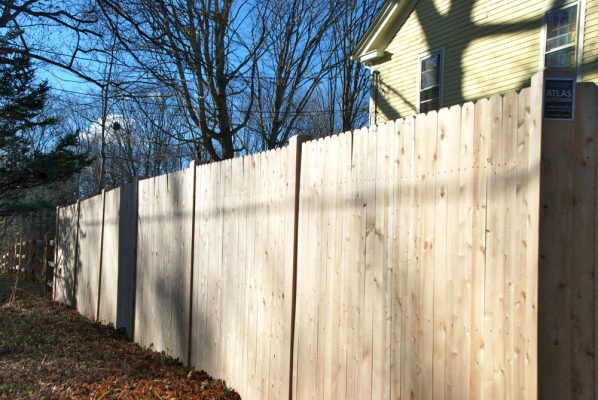

Dog Eared Solid - Cedar
Heights:
3’, 4’, 5’, 6’, 8’
Construction:
1” x 4” boards with 45 degree tops mounted on 2” x 3” molded cedar backer rails.
Double nailed and dowelled.
Dogeared Board on Board - Cedar
Heights:
3’, 4’, 5’, 6’, 8’
Bottom:
1” x 6” S4S boards alternating (board on board).
Top:
1” x 5” cap with bull nose.
Dressing:
Top fascia 1” x 4” with routed edge. Bottom fascia 1” x 6” with routed edge. Bottom fascia, optional.
Construction:
2” x 4” cedar rails, mortised.
